LASER CUTTING

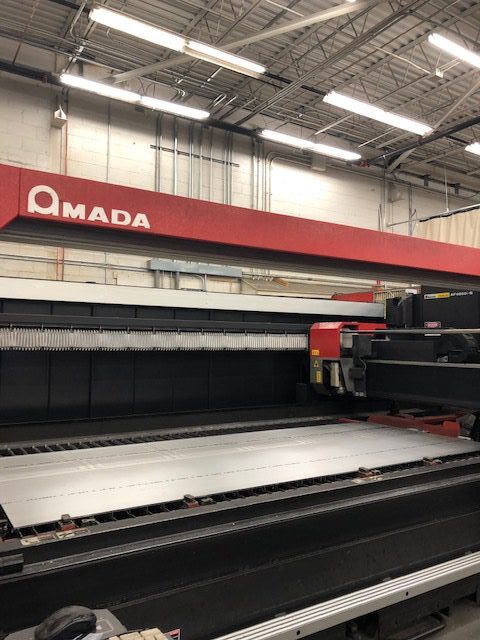

Our most recent addition to the services we offer is laser cutting. In 2019 Brent Marks, the owner of Ramsay Welding & Fabrication, Inc. purchased an Amada 4000-Watt sheet and tube combination laser cutting machine to better serve our customers’ needs. The laser cutting services are run independently under the name of Quality Laser, Inc. and is in the same building as Ramsay Welding & Fabrication, Inc.

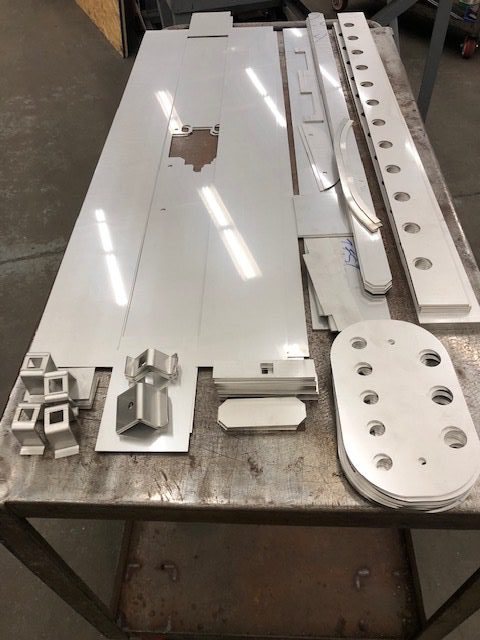

Laser cutting provides extremely accurate cuts with quality edges and nesting of parts gives the best material yields.
The Amada 4000-Watt Laser can cut up to 5’ x 10’ sheet or plate stock in the following materials and thicknesses.
- Carbon Steel Laser Cutting up to .875” thick
- Stainless Steel Laser Cutting up to .50” thick
- Aluminum Laser Cutting up to .375” thick

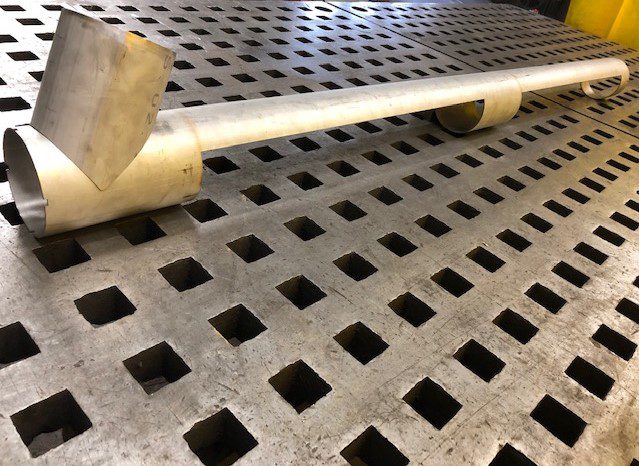

The Rotary Indexer on this laser will cut round, square and rectangular tubing and pipe along with angle and channel. The rotary indexer will cut from ¾” up to 8.625” diameter tube and pipe.
- Capabilities also include pattern development of square to round transitions, elbows and coping and mitering complex shapes.
Hole tolerances will run within +/- .005” and hole to hole tolerances will run within +/- .005”.
In addition to the above materials, we can cut Brass and many other alloys along with plastics and composite materials.
DXF files are easily converted for cutting flats – STEP files are best used for tube and pipe cutting and flat pieces that are formed after cutting.
You can learn more about our laser and waterjet cutting capabilities at Quality Laser, Inc.
Contact us to learn more about our waterjet cutting services.
